• Circuit Board Manufacturing SPINDLE
  • FR06 SPINDLE
  • High Torque ouput

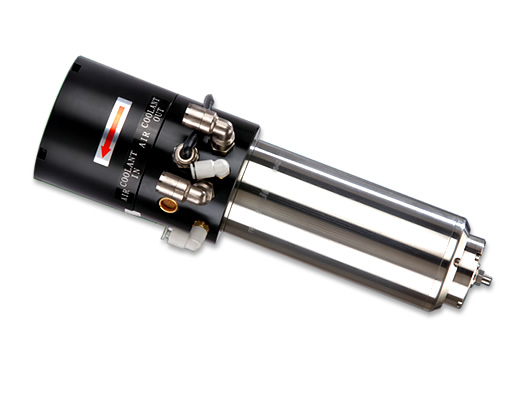

  • The 60K RPM precise ball bearing spindle with detachable collet chuck design has special cooling system to maintain even temperature of spindle internal parts. It is a high-accuracy, high-stability, and high-life spindle provided for PCB routing machine in the market.
FR06 Spindle Features
It's specially cooling system design and stable cooling efficiency enhance processing accuracy, and to exchange collet chucks is easy.

Using Anti-Dust Air Seal

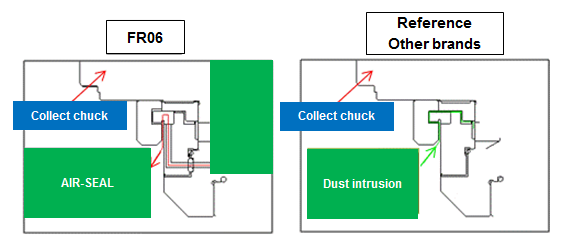

Dust will easily invade by a gap at the front of spindle; using the way of air seal can prevent dust intruding spindle bearing.
Collet Chucks Exchange

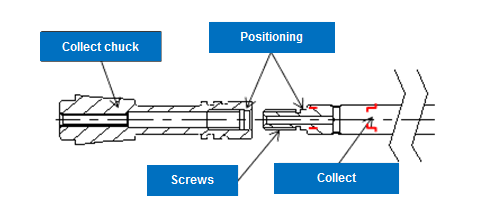

Collet chucks are designed with positioning; using this kind of structure can significantly improve the reproducibility of exchange accuracy.

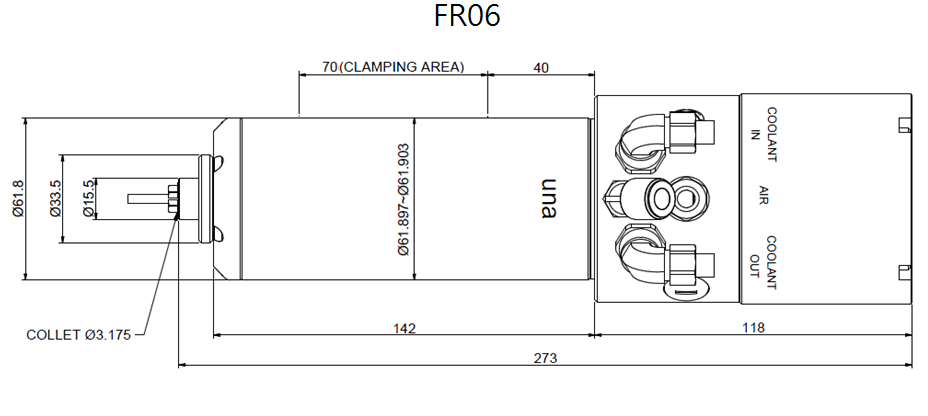

Specifications
Speed range 10,000 ~ 60,000 rpm
Maximum heat dissipation to cooling fluid(Cooler) 300 Watts
Collet locking torque ≧ 2.8 Nm
Radial failure load ≧37 N / μm
Axial failure load ≧28 N / μm
Dynamic runout ≦15 μm(over speed range)
Bearing air pressure 6 kgf/c㎡
Cooling water flow rate 2.5 l/min coolant ( 1.6 l/min water)
Temperature protection system NTC/PTC
Coolant input temperature 18°~22°
approx. weight 4.2kg
