    Small Bore Diameter/High-Accuracy Drilling Processing Solutions

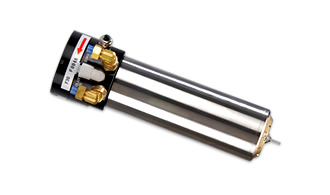

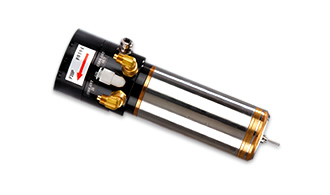

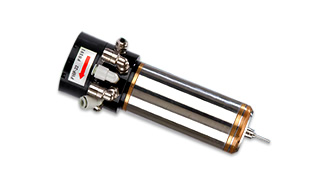

    High-speed Spindle Model: F16P

    Processing efficiency can be upgraded 15~25% (100-120k rpm spindle upgrade)
    Corresponding to small bore processing fields (Drill φ0.2mm)
    Corresponding to the lowest speed, 15Krpm (large-bore wear and increasing operating life)

    Small-diameter processing quality UP Model : ATBC P.F

    Processing positioning accuracy UP
    Bore quality upgrading

    Output upgrading

    Processing conditions Feed rate UP

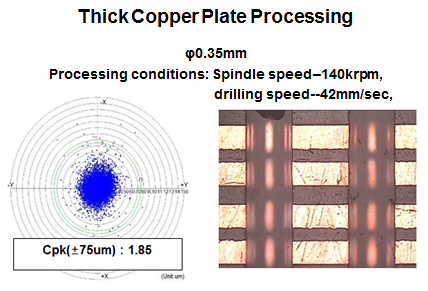

    High Thick Cooper PCB Processing

    F16P Spindle Equipping

    Technology Roadmap for PCB Industry
    Source: TPCA Technology Development Committee
    Version: 2019-2023

    Spindle Model No. : F16P Features

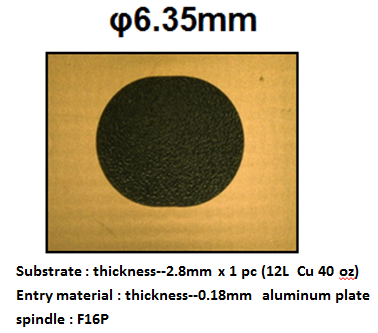

    Substrate Thickness t2.8mm x 1 piece (12L Cu 40 oz)
    Top cover plate Thickness t0.18mm aluminum plate
    Spindle Speed 140krpm, feed rate 42mm/sec

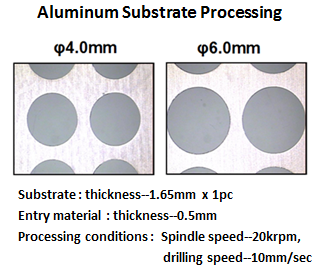

    Substrate Thickness t1.65mm x 1 piece
    Top cover plate Thickness t0.5mm
    Machining conditions Speed 20,000 RPM, feed rate 10 mm/sec

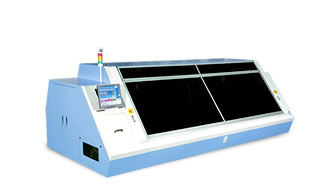

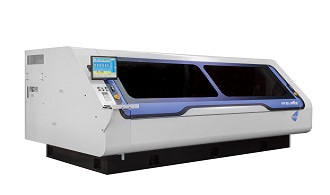

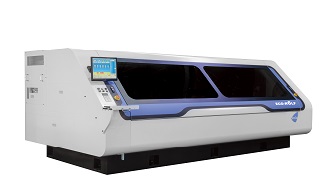

Related Rquipment
